Oracle Business Intelligence 11.1.1.5.0 on Win XP (32bit) (OBIEE)

OS : Windows XP (32bit)/ Oracle Business Intelligence 11.1.1.5.0.

Important Point:

1. Download software (OBIEE 11G)

http://www.oracle.com/technetwork/middleware/bi-enterprise-edition/downloads/biee-111150-393613.html

Repository Creation Utility (OBIEE 11G)

http://download.oracle.com/otn/nt/middleware/11g/111150/ofm_rcu_win_11.1.1.5.1_disk1_1of1.zip

2. Download documentation for quick installation guide

http://download.oracle.com/docs/cd/E21764_01/bi.1111/e16518/toc.htm

3. Reference Guide

http://oraclebi.blogspot.com/2010/08/installing-obiee-11g.html

http://debaatobiee.wordpress.com/2011/02/13/oracle-business-intelligence-enterprise-editionobiee-11g-installation/

4. You will find error in the configuration stage because of the two missing .DLL files in c:/windows/system32 directory

https://forums.oracle.com/forums/thread.jspa?threadID=937606

http://dbataj.blogspot.com/2011/09/obiee-11g-csf-entries-will-not-be.html

Step:

1. First verify the hardware and software requirement

2. Create SCHEMA for OBIEE through RCU (repository creation utility)

NOTE: Make sure you have Oracle Database available (you need to do separate installation of oracle database)

3. Once repository creation is completed then install OBIEE 11g

Important Instruction

1. Don't keep the same password as schema (username)., during the installation of RCU (repository creation utility) system will ask for the password of OBI user then don't give same password as schema name.

2. Make sure you don't have any space in the path of "rcu.bat" file.

eg: c:\documents and setting\rcuhome\bin\rcu.bat" will throw error because "documents and settings" have space.

Screen Shot

http://dbataj.blogspot.com/2011/09/obiee-11g-rcu-repository-creation.html

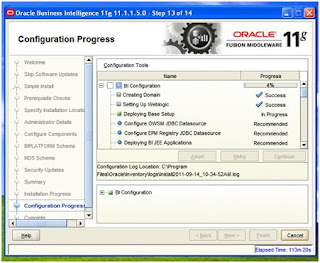

I am installing SAMPLE INSTALL.

Create directory for the installation on file system and select path in the Middleware home.

Don’t change the name of User, just give the password.

Connect string: hostname:port:servicename

Username and password ( is created in RCU ) installation.

During RCU installation we assign password for weblogic user. use that password.

Type: Simple Install

Installation Details

Middleware Home: C:\OBIEE

BI Oracle Home: C:\OBIEE\Oracle_BI1

WebLogic Server Home: C:\OBIEE\wlserver_10.3

BI Domain Home: C:\OBIEE\user_projects\domains\bifoundation_domain

BI Domain Name: bifoundation_domain

Instance Home: C:\OBIEE\instances\instance1

Instance Name: instance1

Configure Components

WebLogic Console

http://fakpro-taj.dummy.local:7001/console

Oracle Enterprise Manager

http://fakpro-taj.dummy.local:7001/em

Business Intelligence Enterprise Edition

http://fakpro-taj.dummy.local:7001/analytics

Business Intelligence Publisher

http://fakpro-taj.dummy.local:7001/xmlpserver

Real-Time Decisions

http://fakpro-taj.dummy.local:7001/ui

NOTE: IE (INTERNET EXPLORER) 7,8 is supported., Google Chrome is supported.
